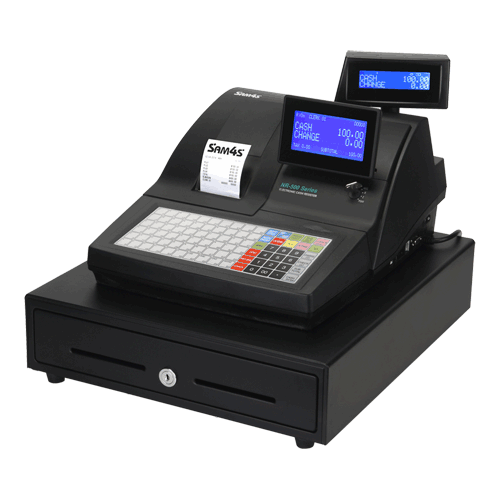

SAM4S NR-510 Thermal Single Station

• Type: 1 Station Direct Thermal
• Printing Speed (Max.): up to 18 Lines/sec
• Paper Width: 57 mm +/- 0.5 mm
• Paper Roll Diameter: Max Ø 83.0 mm
• Paper Supply Method: Easy Paper Loading

Input/Output:

• Keyboards:
  • NR-510: 90 Key Flat Keyboard
  • NR-510R: 48 Raised Key Keyboard (Special Order only, MOQ applies)
• Display:
  • Operator: 192 x 64 Graphic LCD
  • Customer: 16 Character x 2 Line LCD
• Drawer: Metal drawer 4B/8C with media Slots
• I/O Ports:
  • 2 x RS232 (1 x DB9F, 1 x RJ45)
  • 1 x USB port (Software Configurable to host/device)
  • 1 x Ethernet (for PC Comms)

Memory:

• FlashROM: 2 MByte (internal CPU) for Firmware
• RAM: 8 MBits SRAM
• Memory Protection: 60 Days
• Memory Configuration:
  • up to 8000 PLU’s
  • Max. 99 Clerks
  • Max. 99 Groups
  • Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
  • Max. 2 Price Levels
  • Max. 99 Mix & Match
  • Max. 15000 Line Electronic Journal

Operating System Functions:

• 32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
• 24 Character Description
• 14 Digit PLU Number
• 5 Modifier Levels
• 10 Macro keys
• 10 Tender Keys
• 9 Auto Cash Keys
• 3 Keyboard Levels
• Max. 4 Currency Conversion
• Inventory Item
• Condiment Item
• Table Management or Clerk Interrupt
• Training Mode
• 6 Digit Clerk Password
• Graphic Logo on the Receipt Heading and Footing
• Maximum 100 Line Record per Transaction

Software Utilities:

• Programming Utility Software (Ethernet/Serial/USB)

Power:

• Power Supply: AC 230V +/- 10%
• Power Consumption: 10 W

EMC/Safety Standards:

• CE, FCC, UL, TUV, RoHS, C-tick

External Dimensions (WxDxH): 400 x 450 x 266 mm

Weight: 13 Kg
