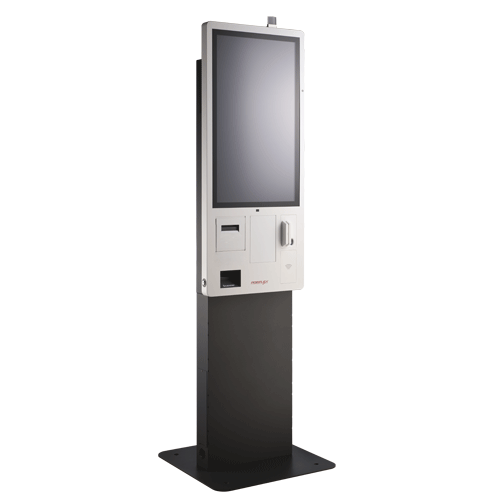

POSIFLEX JK-3232 Cachet 32 Kiosk (J6412) System Series

Designed with slimness and flexibility in mind, the Cachet JK-3200 Series is a 32″ kiosk that offers endless different ways to blend into any retail environment. With a true-flat enclosure, along with a wide range of peripheral options, the Cachet JK-3200 Series is capable of processing all the self-service applications while helping retailers to build intimate relationships with customers.

Description

Pole or wall mounted slimline Kiosk
Also available in Dual Pole Mounting
Standard with 3″ Printer, Camera, Proximity Sensor and Status Indicator
Intel® Elkhart J6412 Quad Core CPU, up to 2.6 GHz, 1.5M Cache
Easy Maintenance – all accesable from the front
Many options available:
Scanner, MSR, Fingerprint reader, Wide angle Camera

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months

Additional information

CPU	Intel® Elkhart Quad Core Celeron™ J6412 / 2.0 GHz ~ 2.6 GHz
Memory	DDR4 SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)	In Australia Standard with 128 GB M.2 SSD, can also be purchased with larger SSD Drives
Display	32" TFT LED Backlit LCD Display
Resolution	1920 x 1080
Touch Panel	True-flat PCAP touch with multi-touch support
I/O Ports	3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support 8 x USB Ports (2 x USB3.0/2.0 & 6 x USB2.0) 2 x 10/100/1000Mb Ethernet Port 1 x M.2 Expansion slot 1 x HDMI port
Audio	Internal 3W speaker x 2
OS Support	Windows 10 IoT 64 Bit
Options	Standard Pedestal (Single or Double) or Wall mount M.2 Wifi/BT Module (cannot coexist with 4G/LTE Module) 2D Barcode Scanner Custom Brackets for Payment terminals MSR 3 Tracks ISO or JOSII (HID/VCOM selectable) Fingerprint reader NFC Reader, Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) 4G/LTE module, Support selected bands & countries with full SIM slot (mini-PCIe module) by request (cannot coexist with WiFi)
Environmental Sealing	N/A
Operating Environment	0 ~ +50 °C, 10 ~ 90% RH with SSD
Storage Environment	-20 ~ +70 °C, 10 ~ 90% RH
Power Supply	12V/84W x 1 + 24V/60W x 1
External Dimensions (WxDxH)	602mm x 602mm x 1902mm (With Pole/base plate) 495mm x 152mm x 1189mm (with wall mount bracket)
Weight	65 Kg (Single with pole) 81.5 Kg (Double Sided with Pole) 35 Kg (with wall mount bracket)

Warranty

Warranty

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
