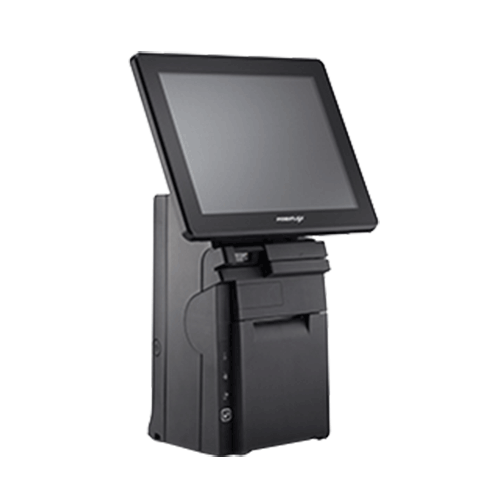

POSIFLEX HS-3512-G2 All-in-one 12.1" POS Touch Terminal Series

POSIFLEX HS-3512-G2 All-in-one 12.1″ POS Touch Terminal Series

The HS-3500 Series is an upgrade from the HS-2500 series and is still the solution for the counter space problem. It takes the all-in-One concept to the extreme! The compact all-in-one design of HS-3500 Series frees more room for counter space, so that the store owner can display and promote more merchandise to maximize sales opportunities. The upgrade is the easy replaceable printer module for better serviceability in the field.

Description

Fan free POS Terminal
12.1″ LCD Display with PCAP Touch
Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
All-in-one design
Small footprint
Build in 80mm high speed thermal Printer
Easy replaceable Printer Module
Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
Several Customer Display Options available
Comes with Bracket to lock down to bench for better stability

GENERAL SPECIFICATIONS

CPU:
- Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
Memory:
- DDR4 SO-DIMM x 2, max. 32GB default 4GB
Storage device(s):
- In Australia standard with 128 GB M.2 SSD
- Also Available larger SSD on request
- 2 x M.2 Connectors (Supporting AHCI mode)
Display:
- 12″ TFT LCD Display
- Resolution: 1024 x 768
- Tilt Angle: 17 ~ 45°
Touch Panel:
- True-Flat PCAP touch with 10 point multi-touch support
I/O Ports:
- 3 x RS232 Ports, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
- 4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
- 1 x Parallel Port
- 1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
- 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) supports 24V Solenoids
- 1 x 10/100/1000 Ethernet Port
- 1 x M.2 Expansion Slot
I/O Devices (Integrated):
- 80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
- Optional:
  - MSR 3 tracks ISO or JISII HID/VCOM Selectable
  - Smartcard Reader
  - RFID Reader HID/VCOM Selectable
  - Fingerprint Reader
  - M.2 WiFi/BT module
  - 2D Barcode Scanner
  - 4G/LTE Module
Audio:
- Line out Only
OS Support:
- WIN 10 IoT
Environmental Sealing:
- IP65 to front of screen
Operating Environment:
- SSD: 0°C – 40°C, 20% – 90% Relative Humidity
Storage Environment:
- -20°C – 70°C, 10% – 90% Relative Humidity
Power Supply:
- External Power Adapter 24V, 100W
External Dimensions (WxDxH):
- 297mm x 198mm x 473mm
Weight:
- 5.5 Kg

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

36 months
