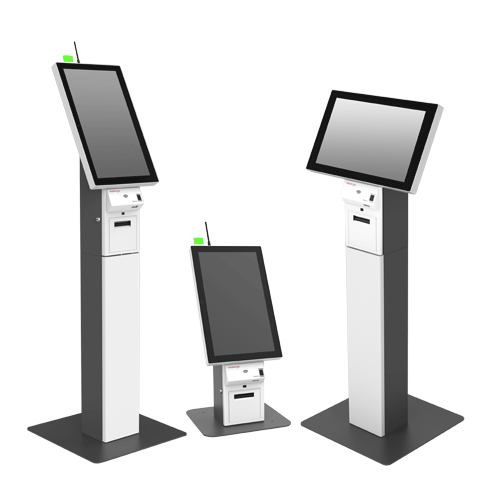

POSIFLEX EK-2130 Mercury 21.5 Kiosk (i3 or i5) Systems Series

The Mercury EK-2100 Series is a 21.5″ display kiosk with a stylish and functional design that will blend seamlessly in any retail environment. The Mercury EK-2100 Series can serve as an Ordering/Queue Kiosk/Information Kiosk to interact with customers and simultaneously help retailers to drive more demand and business.

Description

Slim design 21.5″ Android Kiosk
Standard with 3″ Printer 200mm/sec
Standard with Wide angle Camera & proximity sensor
Intel® Kaby Lake Core i3-7100U CPU 2.4 GHz, 3M Cache
Stand alone or countertop
Available in Portrait or Landscape
Easy Maintenance – all accesable from the front
Many options available:
Scanner, Fingerprint reader, NFC/RFID reader, 4G Module
Status indicator (potrait model only)

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months

Additional information

CPU	Intel Kaby Lake Core i3-7100U CPU 2.4 GHz, 3M Cache
Memory	DDR4 SO-DIMM slot x 1, max. 16 GB, default 8 GB
Storage device(s)	In Australia Standard with 128 GB M.2 SSD, can be purchased with larger SSD Drives
Display	21.5" TFT LED Backlit LCD Display Can be ordered in Potrait or Landscape from Factory
Resolution	1920 x 1080
Touch Panel	True-flat PCAP touch with multi-touch support
I/O Ports	6 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support 8 x USB Ports (2 x USB3.0/2.0 6 x USB2.0) 1 x HDMI Port 1 x 10/100/1000Mb Ethernet Port 1 x M.2 slot (Internal Expansion slot)
Audio	Internal 3W speaker x 2
OS Support	Windows 10 IoT LTSC 64 bit
Options	Standard Pedestal or Countertop (order from Factory) 1MP wide angle Camera Proximity Sensor 60 to 100 cm 3" Thermal Priner 200 mm/sec Optional M.2 Wifi/BT Module 2D Barcode Scanner Custom Brackets for Payment terminals Fingerprint reader NFC Reader (Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092) 4G Module (special order)
Environmental Sealing	N/A
Operating Environment	0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment	-20 ~ +70 °C, 10 ~ 90% RH
Power Supply	Internal 1 x 12V/60W and 1 x24V/60W
External Dimensions (WxDxH)	Potrait version: Countertop 395 x 395 x 774 mm Floorstanding: 500 x 500 x 1546 mm Landscape version: Countertop 540 x 395 x 588 mm Floorstanding: 540 x 500 x 1362 mm
Weight	Countertop 22.6 Kg Floorstanding: 34.8 Kg

Warranty

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
