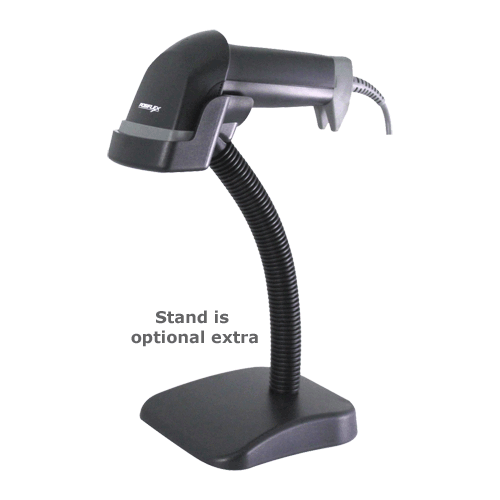

POSIFLEX CD-3200 2D Handheld Imager Scanner

GENERAL SPECIFICATIONS

• Scan Engine: CMOS array sensor
• Light Source: 2 x Visible Red LED
• Scan Pattern: Resolution: 752 (H) x 480 (V) pixels
• Scan Rate: Up to 60 f/sec
• Contrast Ratio: N/A
• Resolution: Typical 5 mils
• Depth of field: 40~120 mm (15 mils QR code)
• Symbologies supported:
  • 1D Barcode Support: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBNISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
  • 2D Barcode Support: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
  • Postal Code Support: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code
• Programming Method: Bar code command
• Indicators/Controls:
  • LED indication
  • Programmable Beeper
• Communication Type: Corded
• Interfaces: USB HID, USB Virtual COM, RS232
• Supply Voltage: DC +5V ±10%
• Power Consumption: N/A
• Drop Specification: Withstands multiple drops from 1.5m onto concrete
• Environmental Sealing: N/A
• Operating Environment: N/A
• Storage Environment: N/A
• EMC/Safety Standards: CE, FCC DOC Compliance
• External Dimensions (WxDxH): 64 x 76 x 170 mm
• Weight: 190 g (cable not included)
