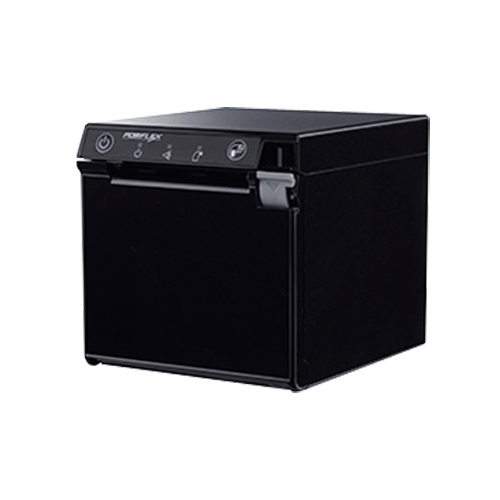

POSIFLEX AURA 7600 POS Thermal Receipt Printer Series

GENERAL SPECIFICATIONS

• Printing Method:
  • Line Thermal Dot Printing
• Printing Width:
  • 80mm Paper: 72mm
• Dot Pitch:
  • 180 dpi (Standard)
  • 203 dpi (Special Order)
• Printing Speed (Max.):
  • 220 mm/Sec
• Number of Columns (180dpi):
  • 80 mm Paper:
    • Font A: 42 columns
    • Font B: 56 columns
    • Font C: 56 columns
    • KKOR, CHN, JPN: 21 columns
• Character Size:
  • Font A: 1.50 × 3.00 mm (12 x 24 Dots)
  • Font B: 1.13 × 3.00 mm (9 x 17 Dots)
  • Font C: 1.00 x 2.0 mm (9 x 24 Dots)
• Character Table/Code Pages:
  • Alphanumeric: 95
  • Expanded Graphics: 128×35 page
  • International: 32
• Bar-code Type:
  • UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code, Datamatrix
• Paper feed method:
  • Friction
• Paper Type:
  • Thermal Paper Roll
• Paper Width:
  • 80 ± 0.5mm
• Paper Roll Diameter:
  • Max Ø 83.0mm
• Paper Thickness:
  • 0.062 ~ 0.075 mm
• Paper Supply Method:
  • Easy Paper Loading, Drop in and Print
• Auto Cutter:
  • Yes
• Emulation:
  • BXL/POS
• Print Buffer:
  • 4KBytes
• NV Memory:
  • 768 KBytes (Mono)
• Sensors:
  • Paper End Sensor
  • Rear Cover Open Sensor
• Drawer Port:
  • 1 port (opens 2 drawers, special cable is needed to open 2 drawers)
• External Device Port:
  • N/A
• Interfaces:
  • USB V2.0 FS, RS232 & Ethernet
• Driver available for:
  • Windows Driver/OPOS/JPOS/ CUPS (Linux/Mac)/Virtual COM USB Driver
• Software Utilities:
  • Virtual COM USB and Ethernet Driver
  • Firmware/NV Image download
  • iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK
  • Chrome Plugin, Cordova Plugin
• Power Supply:
  • External Power Adapter AC100 ~240V
  • Output DC 24V
  • EnergyStar Certified
• Power Consumption:
  • Energy Star Certified
• External Dimensions (WxDxH):
  • 132 x 182.4 x 128.5 mm
• Operating Environment:
  • 0-40°C, 10-80% RH
• Weight:
  • Approx. 1.23 Kg
• Storage Environment:
  • -20-60°C, 10-90% RH
• Reliability:
  • Printer: 60 million Lines
  • Head: 150 Km
  • Auto Cutter: 1.5 Million cuts (Using Specified Paper)
• EMC/Safety Standards:
  • UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
