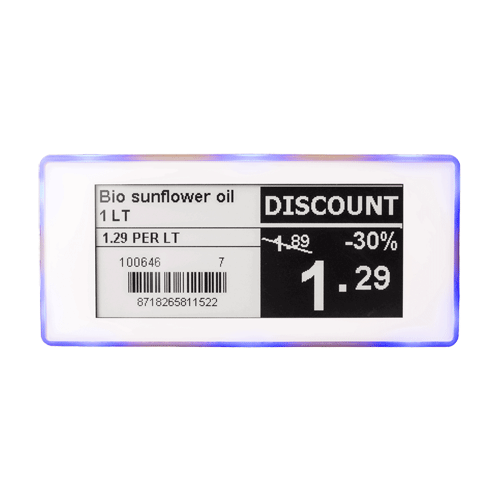

OPTICON PE-292 2.9" E-Paper Electronic Shelving Display with NFC and LED's

OPTICON PE-292 2.9″ E-Paper Electronic Shelving Display with NFC and LED’s

What diversifies the PE-292 from our traditional ESL solution, is the added value of NFC, LED indicators, and sound feedback. This enables you to use customer loyalty cards, payment, and even pick-to-display solutions. The LED can be used as an indicator for a certain action, to attract attention or to find a product in a warehouse.

Description

Compact high-resolution display
Extremely low power consumption
Active NFC reader
RGB LED
Sound feedback
Externally powered via a rail system

GENERAL SPECIFICATIONS

Processor
- CC2530-F128, 8051 core 8-bit MCU
- Clock Speed: 32MHz
Memory
- Internal ROM: 128Kb
- Internal RAM: 8Kb
Audio
- Buzzer: programmable frequency and volume
Display
- 2.9″ Black & White e-Paper
- Resolution: 296 x 128 dots (WxH)
- Active Area: 66.9 x 29.06 mm (WxH)
- Contrast Ratio: 8:1
- Pixel Pitch: 112 dpi
- RGB LEDs surround (10)
I/O Devices (Integrated)
- NFC
  - Frequency: 13.56MHz
  - Protocols: ISO/IEC 14443A/MIFARE/NTAG
Communication
- Type: Wireless IEEE 802.15.4
- Technology: IEEE 802.15.4, 2.4GHz (2405-2480 MHz)
- Range: Typical 25 m indoor
- Speed: up to 250kbps
Power Supply
- Dedicated power rail, 5~12V
- Power Consumption: 0.68W per ESL (max.)
Environmental Sealing
- IP54
Operating Environment
- Temperature: 0 ~ 40°C
- Relative Humidity: 20-85% non-condensing
Storage Environment
- Temperature: -20 ~ 60°C
- Relative Humidity: 20-85% non-condensing
EMC/Safety Standards
- FCC, RoHS, EN 60950-1, IEC60950-1, EN55022, EN55024, WEEE
External Dimensions (WxDxH)
- 92.3 x 42.2 x 11.3 mm
- Mounted on a dedicated power rail: 12.1 mm thickness
Weight
- Approx. 28.6g

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
