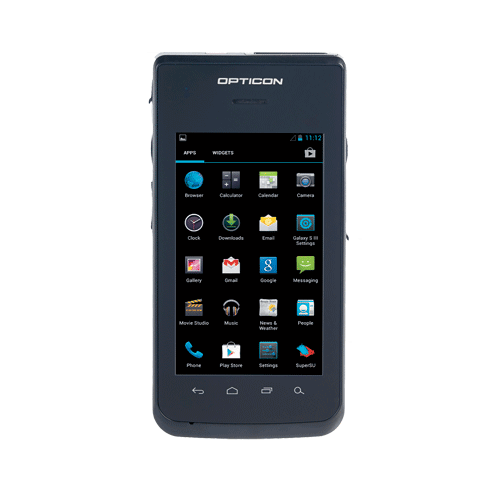

OPTICON H-27 Android Enterprise PDA

GENERAL SPECIFICATIONS

• Processor: Qualcomm MSM8960 Dual-core Krait 1.5 GHz
• Operating Platform: Android 4.2.2
• Development Environment: Not specified
• Software Utilities: Not specified
• Memory:
  • 8GB SDRAM: DDR2 1GB
  • Memory Expansion: Micro-SD card slot, compatible with Micro SD-HC cards up to 32 GB; User-accessible
• Scan Options:
  • Light source: Aiming green LED, illumination LEDs
  • Scan method: CMOS area sensor, 752 x 480 pixels, gray scale
  • Scan rate: Up to 60 fps
  • Image format: Windows Bitmap, JPEG, TIFF
  • Graduation: 256, 16, 2
  • Image output mode: 4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)
  • Reading pitch angle: -50 to 0°, 0 to +50°
  • Reading skew angle: -50 to 0°, 0 to +50°
  • Reading tilt angle: 360°
  • Curvature: R>16 mm (10-digit Codabar), R>20 mm (12-digit UPC)
• Symbologies supported:
  • 1D / linear codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
  • 2D Codes: Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
  • Postal codes: Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
  • Stacked codes: Micro-PDF417, PDF417
• Keyboards: 1 power key, 2 volume keys, 2 scan keys, 4 Android navigation keys
• Audio: Speaker/receiver/microphone/3.5 mm headset (CTIA)/Bluetooth (HSP, HFP, A2DP)
• Display:
  • TFT LCD (350 nits), capacitive touch panel, color screen
  • Size: 4.3”, 800 x 480 pixels
  • Protection: Gorilla glass v3, Coating: Anti-reflective
• Camera: Not available
• I/O Ports:
  • Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
  • Micro-USB port for power only, no data communication interface
  • Ethernet: via single dock (external module) or multiple cradle
• Radio Options:
  • Bluetooth: 4.0
  • W-LAN: WiFi, IEEE.802.11 a/b/g/n
  • WWAN: 2G (850/900/1800/1900), 3G (850, 900, 1700, 1900, 2100); WWAN data: GPRS, eDGe, UMTS, HSPA+
  • NFC: nfcA (ISO14443-3A), nfcB (ISO14443-3B), nfcF (JIS 6319-4), isoDep (ISO 14443-4), nFC Forum Tag Types 1, 2, 3, 4, iSO18092, nfcV (iSO15693), MiFARe Classic, MiFARe Ultralight, nDeF on MiFARe Classic
  • GPS: Integrated GPS and GLONASS
• Battery: Lithium-Ion 3.7V 2860mAh
• Battery Life: 8 hours (LCD on, 3G on), standby time 325 hours
• Drop Specification: 1.5 m / 5 ft drop onto concrete surface
• Environmental Sealing: IP65
• ESD Protection: Not specified
• Operating Environment: -10 ~ 50°C
• Storage Environment: -20 ~ 70°C
• EMC/Safety Standards: Not specified
• External Dimensions (WxDxH): 77 x 147 x 19 mm
• Weight: 244 g
