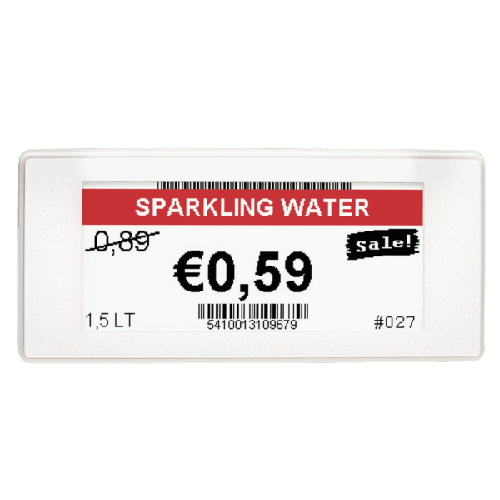

OPTICON EE-293R 2.9" E-Paper Electronic Shelving Display

OPTICON EE-293R 2.9″ E-Paper Electronic Shelving Display

The EE-293R is a high resolution fully graphical, e-paper based, display. Thanks to the high contrast of the display it is even possible to read bar codes off the display using a normal bar code laser scanner. Since the display only consumes power during radio transmission, and display updates, Opticon can guarantee an long life time on only two small batteries.

Description

Electronic Shelf Label
2.9″ e-Paper display 296 x 128 dots
Black, White & Red
Low power comsumption
Typ. 25m Communication Range (indoor)

GENERAL SPECIFICATIONS

Processor:
- CC2530-F128, 8051 core 8-bit MCU
- Clock Speed: 32MHz
Memory:
- Internal ROM: 128Kb
- Internal RAM: 8Kb
Audio:
- N/A
Display:
- 2.9″ Black, White & Red e-Paper
- Resolution: 296 x 128 dots (WxH)
- Active Area: 67 x 29 mm (WxH)
- Contrast Ratio: 8:1
- Pixel Pitch: 112 dpi
Communication:
- Type: Wireless IEEE 802.15.4
- Technology: IEEE 802.15.4, 2.4GHz (2405-2480 MHz)
- Range: Typical 25 m indoor
- Speed: up to 250kbps
- Number of EE-293R per base station: Max. 1500
Battery:
- 2 x CR2450
- Operating Voltage: 2.0-3.3V
- Nominal Voltage: 3.0V
- Battery Life: Usable time approximately 5 Years at room temperature with 2 updates a day
Environmental Sealing:
- IP54
Operating Environment:
- Temperature: 5 ~ 40°C
- Relative Humidity: 20-60% non-condensing
Storage Environment:
- Temperature: -20 ~ 60°C
- Relative Humidity: 20-60% non-condensing
EMC/Safety Standards:
- CE, FCC, RoHS, WEEE2012/19/EU, EN60950-1, IEC 60950-1, EN55022, EN55024
External Dimensions (WxDxH):
- 92.3 x 11.5 x 42.2 mm
Weight:
- Approx. 42.1g

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
