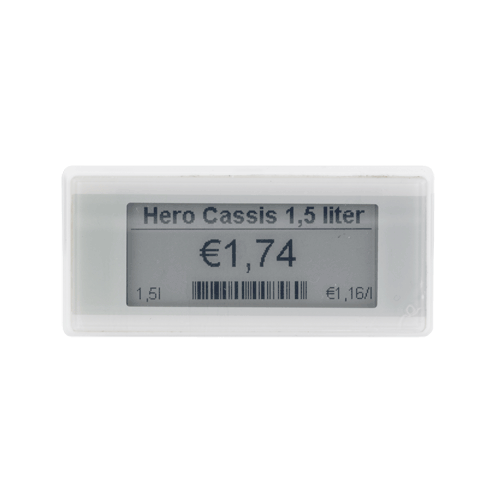

OPTICON EE-201 2" E-Paper Electronic Shelving Display

OPTICON EE-201 2″ E-Paper Electronic Shelving Display

The EE-201 is a high resolution fully graphical, e-paper based, display. Thanks to the high contrast of the display it is even possible to read bar codes off the display using a normal bar code laser scanner. Since the display only consumes power during radio transmission, and display updates, Opticon can guarantee an extreme long life time on only two small batteries.

Description

Electronic Shelf Label
2″ e-Paper display 200 x 96 dots
Black & White
Low power comsumption
Typ. 25m Communication Range (indoor)

GENERAL SPECIFICATIONS

Processor
- CC2530-F128, 8051 core 8-bit MCU
- Clock Speed: 32MHz
Memory
- Internal ROM: 96Kb
- Internal RAM: 6Kb
Display
- 2″ Black & White e-Paper
- Resolution: 200 x 96 Pixels (WxH)
- Active Area: 45 x 22 mm (WxH)
- Contrast Ratio: 10:1
- Pixel Pitch: 111 dpi
Communication
- Type: Wireless IEEE 802.15.4
- Technology: IEEE 802.15.4, 2.4GHz (2405-2480 MHz)
- Range: Typical 25 m indoor
- Speed: up to 250kbps
Battery
- 2 x CR2450
- Operating Voltage: 2.0-3.3V
- Nominal Voltage: 3.0V
- Usable Time: 7 Years at room temperature (update frequency: 4 times per day, poll time 20 seconds)
Environmental Sealing
- IP54
Operating Environment
- Temperature: 5 ~ 40°C
- Relative Humidity: 20-60% non-condensing
Storage Environment
- Temperature: -20 ~ 60°C
- Relative Humidity: 20-60% non-condensing
EMC/Safety Standards
- CE, FCC, RoHS, REACH, EN60950-1, IEC 60950-1, EN55022, EN55024
External Dimensions (WxDxH)
- 65.0 x 15.0 x 34.0 mm
Weight
- Approx. 40g

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
