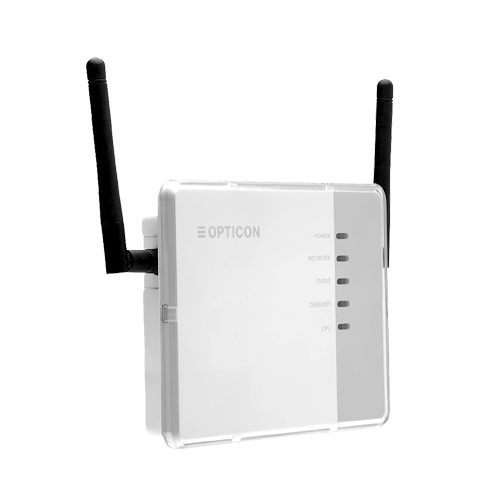

OPTICON EBS-50 Smart Base Station for Electronic Shelf Labels

The new Smart Base Station EBS-50 communicates with your wireless ESLs, hosts the ESL Server Application and can even host its own database server. This one small package is the nerve center of your ESL installation.

Category
Share This Items :

Quick Payment

100% Secure

24/7 Support

Ready For You

Description

  • Smart Base Station
  • Integrated Linux Computer
  • WEB based ESL server application
  • Easy installation, configuration & software updates
  • Upload to the cloud for remote multistore monitoring
  • Customizable dashboard (based on roles and user privileges
  • 2 Port Ethernet switch (daisy chain EBS-40s for more radio coverage
  • Dual Band Wifi Support via USB Dongle, configurable as Wifi Access Point & Client
  • Supports almost all major database formats (CSV, MYSQL, MS-SQL,Oracle, ODBC etc)
  • Support of secure (external) database connections
  • Secure Communication (SSL, HTTPs, VPN, AES)
  • Bi-directional 802.15.4 based radio communication

GENERAL SPECIFICATIONS

  • Processor
    • Cortex A7 MCU
    • Clock Speed: 1.2 GHz
  • Memory
    • Internal FlashROM: 64Gbyte eMMC
    • Internal RAM: 512Mb
  • Audio
    • N/A
  • Display
    • N/A
  • I/O Ports
    • 2 x Ethernet Ports 10/100/1000 Gigabit, port 1 supports PoE Class 3
    • USB host: USB-A type dongles
    • USB OTG: Micro USB
  • Communication
    • Type: Wireless IEEE 802.15.4
    • Technology: IEEE 802.15.4, 2.4GHz, 16 channels (2400-2495 MHz)
    • Range: Typical 25 m indoor
    • Speed: up to 250kbps
    • Standard: No encryption, optional 256-bit AES encryption
    • 2 Independent Radios
  • Power Supply
    • Min 9V, Max 16V
    • Power Consumption: 200 mA
  • Operating Environment
    • Temperature: 0 ~ 70°C
    • Relative Humidity: 20-85% non-condensing
  • Storage Environment
    • Temperature: -20 ~ 70°C
    • Relative Humidity: 20-85% non-condensing
  • EMC/Safety Standards
    • CE, FCC, RoHS, REACH, EN60950-1, IEC 60950-1, EN55022, EN55024, REACh, Anatel
  • External Dimensions (WxDxH)
    • 145 x 110 x 27.1 mm
  • Weight
    • Approx. 250g

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery

12 months
