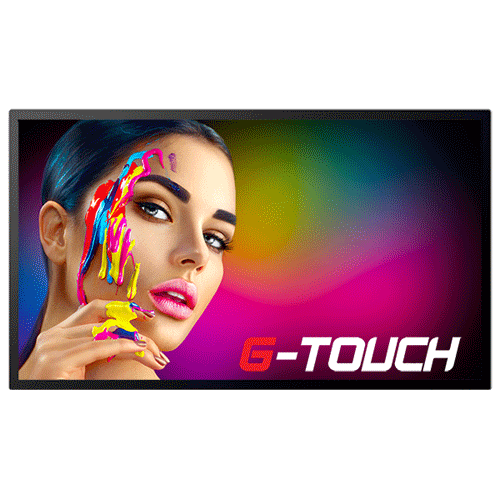

GTOUCH 86″ Interactive Capacitive Touch Display

GENERAL SPECIFICATIONS

• Display
  • Type: 86″ LED Backlit LCD Display
  • Aspect Ratio: 16:9
  • Colour/Gray Scale: 1073M/10bits
  • Pixel Pitch (HxW): 0.744×0.744
  • Display Orientation: Landscape
  • Resolution: 3840 x 2160
• Brightness & Response Time
  • Brightness: 350 nits
  • Response time: 8 ms
• Viewing Angle
  • Horizontal/Vertical: 178/178 degrees
• Touch Panel
  • Type: Capacitive Multi Touch
  • Points: 20
  • Sensitivity: 1 mm
• I/O Ports
  • Audio: 1 x Audio In, 1 x Audio Out, 1 x Optical in
  • USB: 2 x USB Touch, 3 x USB 2.0, 3 x USB 3.0
  • Ethernet, RS232, OPS PC Slot
• Input Signal
  • VGA: 1 x VGA In
  • HDMI: 3 x HDMI In, 1 x HDMI Out
  • AV: 1 x AV In
  • Audio
• OS Support
  • Onboard Android 8.0 Browser
• Operating Environment
  • Temperature: 0 ~ +40 °C
  • Humidity: 10 ~ 90% RH
• Storage Environment
  • Temperature: -20 ~ +60 °C
  • Humidity: 10 ~ 80% RH
• Power Supply
  • AC: 100~240V 50/60Hz
  • Power Consumption: Max. 500W
• External Dimensions (WxDxH)
  • 1962mm x 85mm x 1136mm
• Weight
  • 71.5 Kg
• EMC/Safety Standards
  • Information not provided
