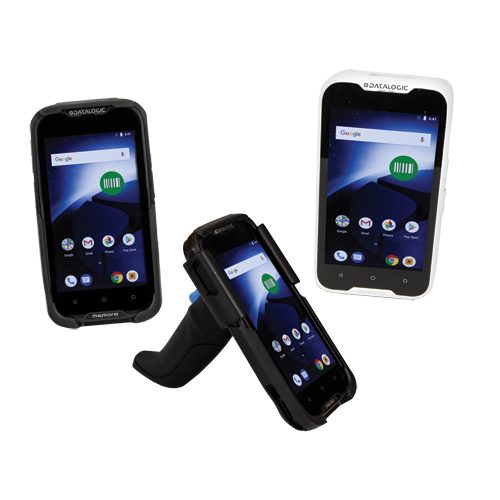

DATALOGIC Memor™ 10 Portable Data Terminal Series

The superior performance of this Android™ full touch PDA is able to support a multitude of applications in various environments. The Memor 10 PDA brings the power and performance of a smartphone with the user-friendly experience of Android in a slim and compact device with an integrated 2D imager. It also incorporates Datalogic’s industry-first wireless charging system for ultra-reliable contactless charging, paired with a 1-piece swappable battery for the best operating advantage

Description

Ultra-Ergonomic, compact and robust
5 inch capacitive multi-touch HD display with Dragontrail™ hardened glass
Android 8.1 (Oreo) with Google Mobile Services
Wireless charging eliminates all contacts on the device and cradle
Ruggedized with drop resistance to 1.5m / 5ft to concrete and IP65 sealing
Dual band Wi-Fi including the latest 802.11ac standard and 802.11r/k for fast roaming
Full suite of cellular connectivity for voice and data, featuring LTE-Advanced/4G+
Assisted GPS for location based apps
Bluetooth v4.2 short range wireless technology
NFC for proximity communications
Advanced 2D ultra-slim imager with Datalogic’s patented ‘Green Spot’ technology for visual goodread feedback
Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
Chemical resistant plastics / enclosure designed to withstand daily cleaning with harsh disinfectant solutions
EASEOFCARE Service Plans offer a wide range of service options to protect your investment

GENERAL SPECIFICATIONS

Processor: Octa-core 2 GHz
Real-time Clock
Sensors:
- 3-axis accelerometer to detect orientation
- Gyroscope to sense angular velocity
Operating Platform: Android 8.1 (Oreo) with Google Mobile Services (GMS)
Development Environment: Java and Xamarin SDK available
Software Utilities:
- Applications: Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
- Provisioning: Android Zero Touch enrollment and QR code or NFC Bump Provisioning
- Config & Maintenance: Datalogic DXU for device configuration and firmware upgrade from PC
- Mobile Device Management (MDM): SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
- Terminal Emulation: StayLinked SmartTE, Wavelink Velocity
Memory:
- eMMC Flash: 32 GB
- System RAM: 3 GB
- Memory Expansion: Micro-SD card slot; Compatible with Micro SD-HC cards; Data transfer up to 48 Mbps; User-accessible
SIM Slot: MicroSIM Standard size
Scan Options:
- Advanced 2D ultra-slim area imaging technology with image capture
- Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology
- Depth of Field: 8.5 to 50.0 cm, depending on barcode density type
- Resolution: VGA (640 x 480 pixels)
- Illumination: White LEDs
- Aiming: 650nm VLD
- Field of View: 48º H x 34º V
- Print Contrast: Min. 25%
- Minimum Element width:
  - 1D Linear: 0.0762 mm / 4 mils
  - PDF: 0.127 mm / 6.6 mils
  - Data Matrix: 0.195 mm / 7.5 mils
- Supported Symbologies:
  - 1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
  - 2D Codes: Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS
  - Postal Codes: Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC), USPS Intelligent Mail
  - Stacked Codes: Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Keyboards:
- Physical Keys: 2 side scan keys; Power On/Off; Volume Up/Down
- 3 user programmable Android™ keys
Audio: Speaker (Polyphonic), Vibration (Software Programmable)
Display:
- 5 inch IPS HD resolution 720 x 1280
- LED backlight
- Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass
- Ambient Light Sensor: auto-adjusts display backlight
- Proximity sensor: auto deactivates display when close to face
Camera:
- Resolution: 13 megapixels
- Illumination: User-controllable LED flash
- Lens: Auto focus
I/O Ports: High-Speed USB 2.0 Host and Client with USB Type-C connector
Radio Options:
- Local Area Network (WLAN): IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v; Frequency range: Country-dependent, typically 2.4 GHz and 5 GHz bands
- Personal Area Network (WPAN): Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE)
- NFC Communication Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
- WWAN / Cellular: LTE-Advanced / 4G+; Cat 6
  - EMEA and ROW Configuration:
    - GSM: Quad band
    - CDMA: BC0
    - WCDMA: B1/5/8
    - FDD_LTE: B1/3/5/7/8/20/28
    - TDD_LTE: B38/39/40/41
- Global Positioning System (GPS): Integrated Assisted-GPS (A-GPS) Supported Types: GPS, GLONASS, BeiDou
Battery:
- Replaceable battery pack with rechargeable Li-Ion batteries; 3.8 V; 4,100 mAh
- Wireless charging: Qi Compliant; 10 Watt fast charging
- Battery Life: 15.6 Watt-hours
Drop Specification:
- Drop Resistance:
  - Withstands drops from 1.5 m onto concrete (with rubber boot)
  - Withstands drops from 1.2 m onto concrete (without rubber boot)
- Tumbles:
  - Withstands 1000 hits from 0.5 m and 250 hits from 1.0 m per IEC

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
