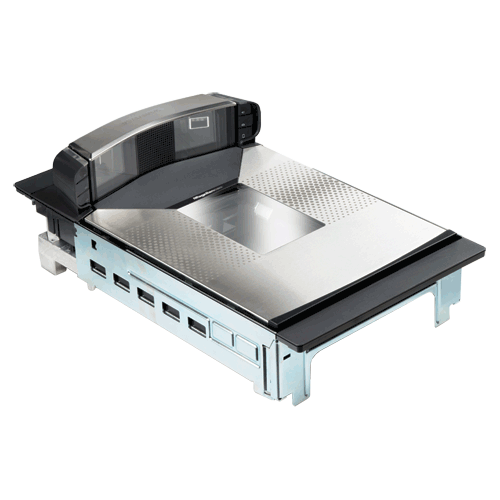

DATALOGIC Magellan® 9800i Series Bi-optic Scanner Scale

GENERAL SPECIFICATIONS

• Scan Engine:
  • Omni-Directional Area Imager Scanner
• Light Source:
  • Multiple Diffused LED’s. Orientation and wavelength optimized for eye comfort
• Scan Pattern:
  • Seamless reading of Linear and 2D codes in all planes (6 sides)
• Scan Rate:
  • N/A
• Image Capture:
  • Graphic Formats: BMP, JPEG, TIFF
  • GreyScale: 256, 16, 2, JPEG, TIFF
  • Contrast Ratio: Min. 25%
  • Resolution: 5 mil
  • Depth of field: Read Height 15.2 cm
  • Tilt Angle: 360°
  • Pitch Angle: 360°
  • Ambient Light Immunity: 0 – 86,080 lux
• Symbologies supported:
  • 1D: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
  • 2D: Aztec Code; Data Matrix; Micro QR Code; QR Code
  • Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites
• Programming Method:
  • Magellan On-Screen Programming (OSP) configuration software is available for download at no charge.
• Remote Management Capabilities:
  • WMI (OPOS and JavaPOS) and MBeans (JavaPOS) compliant
  • Host Download: Supports IBM Director, Wavelink Avalanche™ and other ERP Management Solutions.
• Driver available:
  • JavaPOS Utilities are available for download at no charge.
  • OPOS Utilities are available for download at no charge.
• Indicators/Controls:
  • Audio: 85dB Speaker, adjustable Tone & Volume, supports WAV file formats
  • Visual: Good Read confirmation for all reading planes, Scale center of zero, ScaleSentry™ Event, Sensormatic EAS Status
• Communication Type:
  • Corded
• Interfaces:
  • IBM 46xx, RS232, OEM IBM USB, Powered USB, Single cable RS232 Scanner/Scale
  • I/O Ports: Powered RS232 Aux Port, Powered USB host Type A x 2, EAS Controller Port, Sensormatic, Interlock, Remote Scale Display port, Scale Host Port
• I/O Devices (Integrated):
  • Scale (Model Dependent):
    • Capacity: 15 kg
    • Maximum Static weight: 68 kg
    • Minimum Increment: 0.005 kg
    • Vibration Immunity: 4 Programmable Filter settings
    • Adjustments required: Calibration
• Supply Voltage:
  • AC Input: 100-250 VAC, 50-0 Hz
• Power Consumption:
  • Nominal: 12 Watts
  • Sleep mode: 11 Watts
• ESD Protection:
  • 25 kV
• Operating Environment:
  • Temperature: 10 ~ 40 °C
  • Relative Humidity: 5-95% Non-Condensing
• Storage Environment:
  • Temperature: -40 ~ 70 °C
  • Relative Humidity: 5-95% Non-Condensing
• EMC/Safety Standards:
  • The product meets necessary safety and regulatory approvals for its intended use.
  • Complete list in Quick Reference guide
  • Complies to EU RoHS, Complies to China RoHS, Complies to R.E.A.C.H., EC1907/2006
• External Dimensions (WxDxH):
  • Width: 29.2 cm
  • Depth Below the Counter: 10.6 cm
  • Height Above the Counter: 6.8 cm
  • Length:
    • 9801 Short Scanner only: 35.2 cm
    • 9803 Medium Scanner only: 39.9 cm
    • 9804 Medium Scanner/Scale: 39.9 cm
    • 9806 Long Scanner/Scale: 50.7 cm
• Weight:
  • Long Platter Scanner/Scale: 8 kg
