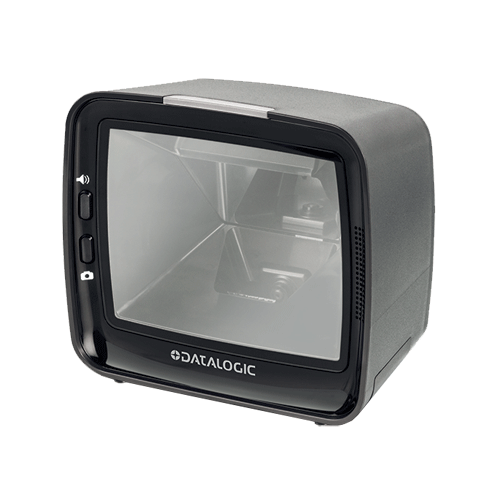

DATALOGIC Magellan® 3450VSi Series Omni-directional Imaging Scanner

The innovative Magellan 3450VSi on-counter scanners from Datalogic are simple to use and bring best-in-class benefits to your operations. The high-end Magellan 3450VSi has the best scanning performance of any single plane scanner on the market. These scanners work well in a variety of applications, including retail point of sale, pharmacy, drug verification and a hands-free component verification. The extra-large reading area and sweep scanning provide fast and easy reading from a variety of barcodes and other sources. The Magellan 3450VSi bring greater efficiency to your business.

Description

Advanced digital imaging provides class-leading performance and reliability
Seamless 1D, 2D and Digimarc® digital watermark reading
Smoothly reads all bar codes, whether displayed on cell phones or printed
Subtle, adaptive illumination for user comfort
Solid-state electronics for silent operation and superior reliability
Available Magellan Customer Service Scanner (CSS) with omni-mount for reading cell phones, coupons and loyalty cards
Software driven – flexible and upgradeable
Image capture
Micro SD card slot
Multiple interfaces in every unit
Powered USB auxiliary port
Checkpoint Systems and Tyco Sensormatic EAS compatible
Diagnostics reporting
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

GENERAL SPECIFICATIONS

Scan Engine: Area Imager
Light Source: Multiple diffused LED’s
Scan Pattern: 1280 x 1024
Scan Rate: Max. 39 million pixels per second
Image Capture:
- Graphic Formats: BMP, JPG, Greyscale 256, 16, 2
- Capture Area: 1280 x 1024
Contrast Ratio: Min. 25%
Resolution: 5 mil
Depth of Field:
- Printing resolution, symbol length, scan angle, contrast and ambient light dependent.
- 1D / Linear Codes:
  - 5 mils: 3.8 to 8.1 cm
  - 7.5 mils: 1.3 to 11.4 cm
  - 10 mils: 0 to 15.2 cm
  - 13 mils: 0 to 20.3 cm
- 2D Codes:
  - 6.6 mils: PDF417: 3.8 to 10.2 cm
  - 10 mils: PDF417: 0 to 12.7 cm
  - 10 mils: Data Matrix: 1.3 to 6.4 cm
  - 20 mils: Data Matrix: 0 to 18.0 cm
Tilt Angle: 0 – 360°
Pitch Angle: +/- 65°
Skew Angle: +/- 75°
Ambient Light Immunity: 0 – 86100 lux
Symbologies supported:
- 1D / Linear Codes:
  - Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
- 2D Codes:
  - Aztec Code, Data Matrix, QR Code
- Postal Codes:
  - Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code(RM4SCC); Swedish Post
- Stacked Codes:
  - GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417
- Digital Watermarks:
  - Optional support for Digimarc® Barcodes / GS1 DW code
Programming Method: Magellan On-Screen Programming (OSP) configuration software is available for download at no charge. Remote Host Download
Driver available: JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Indicators/Controls:
- Green LED for good read
- Good Transmission
- Audio Speaker (adjustable Tone & Volume) Supports .wav Files
Interfaces:
- OEM (IBM) USB
- RS-232
- USB Keyboard, USB Com
I/O Ports: Powered Type A USB (USB Com) Aux. Port
Supply Voltage: AC Input: 100-240 VAC, 50-60 Hz; Output: 5-12V
Power Consumption: Max 3.8 Watts, nominal 3.6 Watts, Sleep mode 3.0 Watts
ESD Protection: 25 kV
Operating Environment: 10 ~ 40 °C, RH: 5-95% Non Condensing
Storage Environment: -40 ~ 70 °C, RH: 5-95% Non Condensing
EMC/Safety Standards:
- Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
- Environmental Compliance: Complies to China RoHS; Complies to EU RoHS
- LED Classification: EN62471 and IEC62471 Lamp Illumination Exempt Group
External Dimensions (WxDxH): 13.7 x 15.2 x 9.4 cm
Weight: 0.6 Kg

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

36 months
