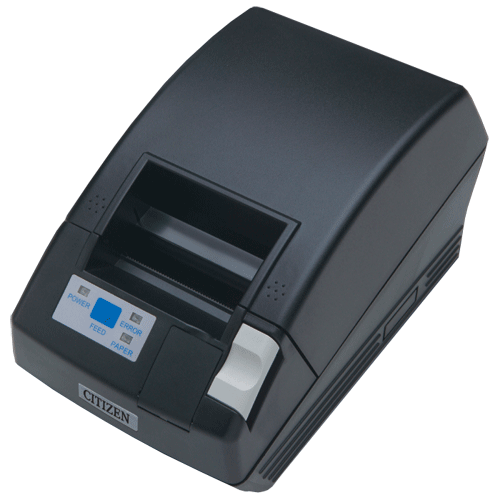

CITIZEN CT-S281 Thermal Printer Series

oioo

• Printing Method
  • Line thermal dot print method
• Printing Width
  • 48mm / 384 dots
• Dot Pitch
  • 8 × 8 dots / mm (203 dpi)
• Printing Speed (Max.)
  • Max. 80mm/s
  • 60mm/s in label printing
• Number of Columns
  • 32 columns – Font A: 12 x 24 dots horizontal and vertical
  • 42 columns – Font B: 9 x 24 dots
  • 48 columns – Font C: 8 x 16 dots
• Character Size
  • Font A: 1.50 × 3.00 mm
  • Font B: 1.13 × 3.00 mm
  • Font C: 1.00 x 2.00 mm
• Character Table/Code Pages
  • Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/WPC1252/Katakana/Thai code 18
• Bar-code Type
  • UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93, PDF417, QR Code
• Line Spacing
  • 4.23mm (1/6 inch) (changeable using commands)
• Paper feed method
  • Friction
• Paper Type
  • Thermal Paper Roll
• Paper Width
  • 58+0/-1 mm
• Paper Roll Diameter
  • Max Ø 83.0mm
  • Label paper 80.0mm
• Paper Thickness
  • 0.06 to 0.1mm
• Paper Supply Method
  • Easy Paper Loading, Drop in and Print
• Auto Cutter
  • Guillotine, Full or Partial cut
• Indicators/Controls
  • Power LED, Feed Button, Error LED, Paper LED, Power switch
• Emulation
  • Citizen
• Print Buffer
  • 4K bytes / 45 bytes
• NV Memory
  • 256 Kb (capable of storing user-defined characters and logos)
• Sensors
  • Paper end Sensor
  • Printer Cover open Sensor
• Drawer Port
  • N/A
• External Device Port
  • N/A
• Interfaces
  • Serial (RS-232C compliant), USB
• Driver available
  • WIN 7, CUPS
• Software Utilities
  • Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
• Power Supply
  • Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
  • Rated output: DC8.5V, 2.5 A
• Power Consumption
  • Approx. 18 W (normal printing)
  • 2W (standby)
• External Dimensions (WxDxH)
  • 106W x 180D x 105H mm
• Weight
  • 630g approx. (Printer)
  • 240g approx. (AC adaptor)
• Operating Environment
  • 5 to 40 °C, 10 to 85 % RH (no condensation)
• Storage Environment
  • -20 to 60 °C, 10 to 90 % RH (no condensation)
• Reliability
  • Print head life: 50km, 100 million pulses
  • Auto cutter life: 1 million cuts (at normal temperature and humidity using recommended paper)
• EMC/Safety Standards
  • UL, C-UL, FCC class B, TÜV, CE marking, C-tick
