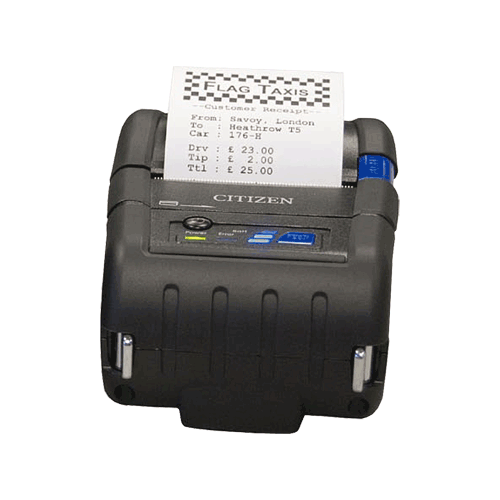

CITIZEN CMP-20 Portable 2 inch Thermal Printer Series

GENERAL SPECIFICATIONS

• Printing Method:
  • Line Thermal Dot Printing
• Printing Width:
  • 48 mm Paper
• Dot Pitch:
  • 203 dpi
• Printing Speed (Max.):
  • Max. 80mm/sec
• Number of Columns:
  • Font A – 32 columns
  • Font B – 42 columns
• Character Size:
  • Font A: 12 x 24 Dots
  • Font B: 9 x 17 Dots
• Character Table/Code Pages:
  • Alphanumeric characters, extension character, 18 codepages, 14 international characters
• Bar-code Type:
  • UPC/A, JAN (EAN) 13 & 8, ITF, CODE 39, CODABAR, CODE 93, CODE 128, PDF417 (2D)
• Line Spacing:
  • 4.23mm changable using commands
• Paper feed method:
  • Friction
• Paper Type:
  • Thermal Paper Roll
• Paper Width:
  • 58 mm Paper
• Paper Roll Diameter:
  • Max Ø 48 mm
• Paper Thickness:
  • 65um
• Paper Supply Method:
  • Easy Paper Loading, Drop in and Print
• Auto Cutter:
  • N/A
• Indicators/Controls:
  • Power and Battery Charge & Error Indicator
  • Paper Feed & Power Button
• Emulation:
  • ESC/POS
• Memory:
  • 256KB – capable of storing user-defined characters and logos
• Sensors:
  • Paper End Sensor, cover open sensor
• Interfaces:
  • Standard: Serial (RS 232C) & USB
  • Optional (Model dependant): Bluetooth class 2, WLAN 802.11 b/g
• Driver available:
  • Windows 2000/XP/Vista, Windows Mobile, CUPS, Windows SDK, Windows SDK CE5/CE6, Android SDK, iOS SDK
• Software Utilities:
  • iOS SDK, Android SDK
• Battery:
  • Rechargeable 7.4V Li-ion 1800mAh
  • On Full Charge: Continuous printing for up to 90 minutes, 24 Hours on Standby
  • Charger Specifications: Input 100-240V AC, 50-60Hz, Output 8.4VDC 1200mA
• MSR:
  • Factory Option
  • 2 Track MSR
  • IC Card Reader
• External Dimensions (WxDxH):
  • 96 x 136 x 58 mm
• Weight:
  • 442 g
• Operating Environment:
  • Temperature: 5 to 40 °C
  • 95% RH Non-condensing
• Storage Environment:
  • Temperature: -10 to 50°C
  • 95% RH Non-condensing
• Environmental Sealing:
  • IP42
• Mechanical Shock:
  • Multiple drops of 1.2m (6 faces)
• Reliability:
  • Printhead 50 km
• EMC/Safety Standards:
  • UL, C-UL, FCC Class A, TUV-GS, CE, CCC
