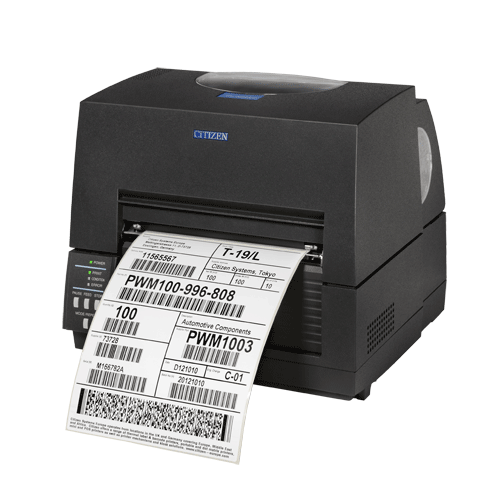

CITIZEN CLS-S6621 6" Thermal Transfer Label Printer Series

CITIZEN CLS-S6621 6″ Thermal Transfer Label Printer Series

Our unique 6-inch CL-S6621 label printer sets a new standard for desktop machines. Smaller and more efficient than any other comparable printer, the CL-S6621 offers automatic Cross-Emulation, for easy integration and compatibility, and features our advanced Hi-Lift™ Mechanism. The CL-S6621 delivers precision printing with fast media loading and ease of use, making it the perfect solution for tough, reliable and high volume label printing.

Description

6″ Thermal Transfer Label Printing
Tough plastic case with all-metal printhead
Front exit – prevents damage from moisture or foreign objects
Durable design – Citizen’s proven Hi-Lift™ all-metal mechanism
Fast print out – 6 inches per second (150 mm per second)
Large media capacity – holds rolls up to 4.9 inches (125 mm)
Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
Low space requirement – integrated power supply enables clean work station
No more unreadable labels – the ARCP™ ribbon control technology assures clear prints.

GENERAL SPECIFICATIONS

Printing Method:
- Direct Thermal and Thermal Transfer
Printing Width:
- Max. 168 mm (6.6 inches)
Printing Length:
- Max. 16 to 2539.7 mm
Dot Pitch:
- 8 × 8 dots / mm (203 dpi)
Printing Speed (Max.):
- Max. 150mm/s (6 inches per second)
Font:
- 1 Scalable, 8 Bitmap resident
Character Table/Code Pages:
- See User Manual
Bar-code Type:
- Code3of9, UPC_A, UPC-C, Interleaved 2of5, Code 128, EAN-13, EAN-8, HIBC, CODABAR (NW-7), Plessey, Int2of5, CASE CODE, Code93, ZIP, UPC2DIG ADD, UPC5DIG ADD, UCC/EAN128 (for K-MART), RandomWeight, Telepen, FIM, UPS Maxicode, PDF-417, Data Matrix, and QR code.
Paper feed method:
- Friction Feed
Media Type:
- Roll, fanfold (Continuous media, die-cuts media,)
Media width:
- Min. 50 mm to Max. 178 mm
Paper Roll Diameter:
- Max Ø 127 mm with 25.4 to 76 mm Core
Media Thickness:
- Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter:
- Optional Cutter
Indicators/Controls:
- Power/Error LED (Green/Red)
- Function keys: FEED, STOP, PAUSE
- Buzzer
- Power Switch
Emulation:
- Datamax® W-Class™ & DMX600™
- Zebra ZPL-II, cross emulation, auto detection ASIC interpreter for data stream processing and ticketing integration
CPU:
- 32 Bit RISC CPU
Memory:
- RAM 32MB total, 1.0 MB available for use
- FLASH 8MB total, 1.0MB available for use
Sensors:
- Transparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used)
Interfaces:
- Standard with USB 2.0 (Full speed) & RS-232C interface
- Optional Ethernet or Parallel IEEE1284 or Wireless Lan.
Driver available:
- Drivers by Seagull
- Compatible with Windows XP/2003/2008/Vista, Windows 7, Windows 8, Windows Server 2008 R2.
Software Utilities:
- Bartender Ultralite
Power Supply:
- Internal 200-240V 1.5A 50/60Hz
Power Consumption:
- Max. 1.5A
External Dimensions (WxDxH):
- 303 × 290 × 273 mm
Weight:
- 7.9 Kg approx.
Operating Environment:
- Temperature: 0 to 40 °C
- Humidity: 30 to 80% (non-condensing)
Storage Environment:
- Temperature: -20 to 60 °C
- Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards:
- UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

24 months
