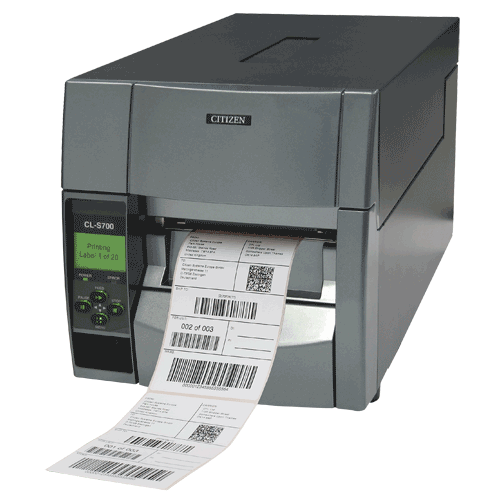

CITIZEN CL-S700II Series 4" Thermal Transfer Label Printer

CITIZEN CL-S700II Series 4″ Thermal Transfer Label Printer

Our CL-S700II series is designed for ease of use; the metal mechanism opens vertically to a full 90° to allow for easy ribbon access, while integrated ribbon control and positioning support precision printing on even small or specialist media. The CL-S700II also comes with the option to print in both direct thermal and thermal transfer modes.

Description

Easy ribbon loading: Hi-Lift™ metal mechanism opening to a full 90° to allow for easy ribbon access
Heavy duty metal case for strength and durability
Print Resolution CLS700II: 203 DPi, CLS703II: 300 DPi
Ribbons up to 450 metres long either inside or outside wound with ARCP™ ribbon control
Power switch is conveniently located at the front of the printer
Large graphic LCD for clear indication of printer status and easy printer configuration
Soft-close top cover for user safety and user courtesy
Parallel, serial and USB interfaces standard; optional Ethernet and Wireless LAN
Cross-Emulation™: Supports both Datamax® and Zebra® emulations and will sense the language being used and offer to switch emulations automatically
Free-of-charge on CD with printer, including support for various platforms
Media capacity: Internal 203mm (8-inch) media capacity
CLP7xxIIR: Rewind model

GENERAL SPECIFICATIONS

Printing Method:
- Direct Thermal and Thermal Transfer
Printing Width:
- Max. 104 mm
Printing Length:
- Max. 253.9 mm
Dot Pitch:
- CLS700II/700IIR: 203 dpi, 8 dots/mm
- CLS703II/703IIR: 300 dpi, 8 dots/mm
Printing Speed (Max.):
- CLS700II/700IIR: Up to 254 mm (10 inches) per second
- CLS703II/703IIR: Up to 203 mm (8 inches) per second
Font:
- Fixed Pitch Font, OCR Font, Proportional Font
- Kanji Font
Character Table/Code Pages:
- See User Manual
Bar-code Type:
- 1D Codes: Code39, Code93, Code128, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5 Case Code, UPC2DIG add, UPC5DIG add, Telepen, ITF14 & 16, Industrial 2 of 5, COOP 2 of 5, GS1*1
- 2D Codes: PDF-417, UPS Maxi Code, DATA Matrix, QR Code
Paper feed method:
- Friction Feed
Media Type:
- Roll, fanfold (Continuous media, die-cuts, continuous tags, paper or ticket)
Media width:
- Min. 25.4 mm
- Max. 118 mm
- Label Width: Min. 7.62 mm
- Max. 118 mm
Paper Roll Diameter:
- Max Ø 203 mm with 38 to 76 mm Core
Media Thickness:
- Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter:
- Optional Cutter
Indicators/Controls:
- Graphic LCD with 4 buttons
- VuePrint™ Menu configuration system
- LED: Power, Error
- Buzzer: Alarms, errors etc
- Operating keys: Pause, Feed, Stop, Menu
- Power switch
Emulation:
- Datamax® (DMX400™, Prodigy Plus™, I-Class™) and Zebra® ZPL2® on board Cross-emulation™. Printer will sense the language being used and offer to switch emulations automatically.
- CBI™ BASIC Interpreter
- Eltron® EPL2®
CPU:
- 32 Bit RISC CPU
Memory:
- SDRAM 64Mb total, 30 MB available for use
- FLASH 16MB total, 4.0MB available for use
Sensors:
- Transparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used)
Interfaces:
- Standard with
  - USB 1.1 (Full speed)
  - RS-232 (Baudrate from 2400-115200) interface
  - Parallel (IEEE 1284)
- Optional:
  - Ethernet LAN or
  - Wireless Lan.
Driver available:
- Drivers by Seagull
Software Utilities:
- Bartender Ultralite
Power Supply:
- AC100 – 240V, 1.5 – 3.5A, 50/60Hz
Power Consumption:
- Max. 3.5A
External Dimensions (WxDxH):
- CLS700II/703II: 255 × 490 × 265mm
- CLS700IIR/703IIR: 255 × 490 × 385mm
Weight:
- CLS700II/703II: 13.3Kg
- CLS700IIR/703IIR: 17.6Kg
Operating Environment:
- Temperature: 0 to 40 °C
- Humidity: 30 to 80% (non-condensing)
Storage Environment:
- Temperature: -20 to 60 °C
- Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards:
- UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM, CCC

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
