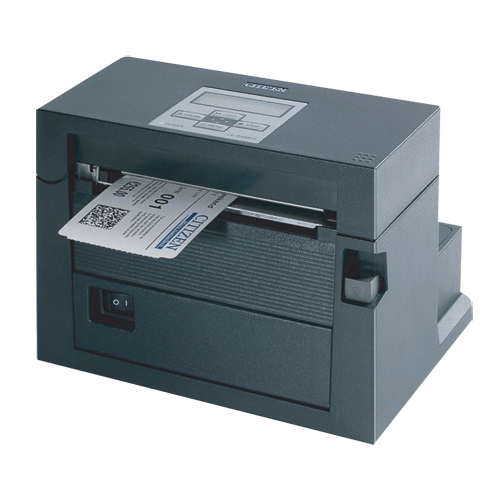

CITIZEN CL-S400DT 4" Direct Thermal Label Printer Series

CITIZEN CL-S400DT 4″ Direct Thermal Label Printer Series

The CT-S400 is a compact footprint Label or Ticketing printer with an industrial performance metal Mechanism. It’s Hi-Open® print mechanism makes it very easy to change Label or tag media. Typical applications are Event ticketing, Boarding passes, Shelf-edge labelling, Retail Swing tags, Fanfold Labels for logistics.

Description

Direct Thermal Label Printer
High Lift Mechanism for easy media loading
Self-contained metal mechanism for durable operation
Internal Power Supply
Both Zebra® and Datamax® emulations are installed as standard
BASIC interpreter for code conversion and support for other ticketing emulations
Adjustable media sensors for tags with unusual cut-outs or black marks
Standard tear-bar for perforated lables or optional autocutter
Internal Serial & USB standard plus ethernet or Parallel options available
Media Roll Holder or fanfold stacked media

GENERAL SPECIFICATIONS

Printing Method:
- Direct Thermal
Printing Width:
- Max. 104 mm
Printing Length:
- Min. 4 mm
- Max. 812.8 mm
Dot Pitch:
- 8 × 8 dots / mm (203 dpi)
Printing Speed (Max.):
- Max. 15.2 mm/s (6 ips)
Font:
- Datamax® Emulation:
  - Seven kinds of fixed pitch font
  - OCR fonts (OCR-A, OCR-B) *3
  - Proportional fonts
  - TrueType™ rasterizer
- Zebra® Emulation:
  - Five kinds of fixed pitch font
  - OCR fonts (OCR-A, OCR-B) *3
  - Proportional fonts
  - TrueType™ rasterizer *4
- *3: The OCR font may have a low recognition rate according to the reader.
- *4: Equipped with UFST™ and TrueType™ rasterizer licensed from Agfa Corporation.
Character Table/Code Pages:
- See User Manual (page 55 under Symbol set)
Bar-code Type:
- Datamax® Emulation:
  - Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM, UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS
- Zebra® Emulation:
  - Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet, Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39
Paper feed method:
- Friction Feed
Media Type:
- Roll, fanfold (Continuous media, die-cuts media, continuous tags, continuous tickets)
Media width:
- Min. 19.5 mm to Max. 118 mm
Paper Roll Diameter:
- Max Ø 127 mm with 25.4 to 76 mm Core
- Min. media core when using labels: 50.8 mm
Media Thickness:
- Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter:
- Optional guillotine Cutter
Indicators/Controls:
- Power/Error LED (Green/Red)
- LCD Panel
- 4 Function keys: FEED, STOP, PAUSE, MENU
- Buzzer
Emulation:
- CITIZEN original language
- Datamax® Programming language
- Zebra® programming language
- Auto detect
CPU:
- 32 Bit RISC CPU
Memory:
- Flash ROM 8MB (User area: 1MB)
- Datamax® Emulation: SDRAM 16MB (User area: 1MB)
- ZEBRA® Emulation: SDRAM 16MB (User area: 4MB)
Sensors:
- Transparent sensor
- Reflective sensor
- Label peeling sensor (if optional Peeler is used)
Interfaces:
- Standard with USB 2.0 (Full speed) & RS-232C interface
- Optional Ethernet or Parallel (compatible, Nibble, ECP mode)
Driver available for:
- Drivers by Seagull
Software Utilities:
- Bartender Ultralite
Power Supply:
- Internal 200-240V 50/60Hz
- ENERGY STAR® qualified printer
Power Consumption:
- Max. 1.2A
External Dimensions (WxDxH):
- 206 × 218 × 150 mm (With Paper roll Holder)
Weight:
- 3 Kg
Operating Environment:
- Temperature: 0 to 40 °C
- Humidity: 30 to 80% (non-condensing)
Storage Environment:
- Temperature: -20 to 60 °C
- Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards:
- CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

24 months
