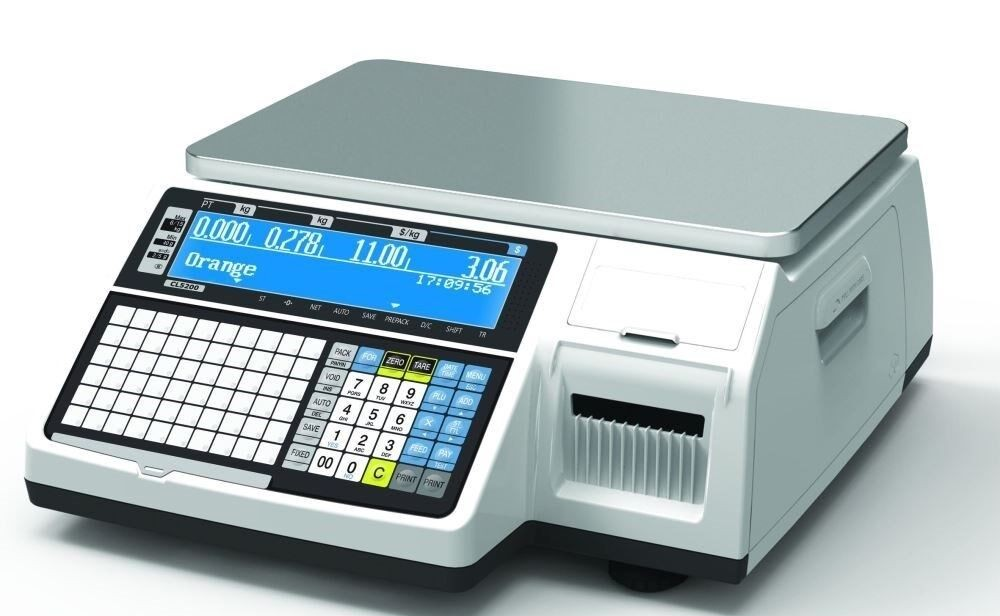

CAS CL-5200 Series Label Printing Scale

User friendly retail price computing scale with built-in thermal label printer and easy-to-use replacement printing cartridge. Barcode EAN13, 12OF5, CODE128C. Label formats: 40 fixed & 20 free format. 3,000 PLU’s & 1,000 character Ingredient messages. Ethernet Network Communication. Control all program data using CL-Works software. Pole and non-pole type available. Trade Approved. Max Capacity: 15 ~ 30kg

Description

Label Printing Scale
15 or 30 Kg Trade approved (NMI No. 6/4D/382)
6000 PLU’s & 1000 ingredients
Large LCD Display
High Speed Printer
Easy loading printing cartridge
45 preset Label formats + 20 freely modified label formats.
Prints almost all conventional 1D Barcodes
Ethernet, RS232 and USB interface
CL-Works PC Software

GENERAL SPECIFICATIONS

Weight Capacity:
- 6/15 or 15/30 (depending on Model)
Weight Readability:
- 2/5g or 5/10g (depending on Model)
External Resolution:
- 1/3000 (dual Interval)
Display:
- Graphic LCD (208×48)
Printer:
- Direct Line Thermal printer
Cartridge-loading-type Label installation
Printing Speed (Max.):
- Max 100 mm/sec
Printing Resolution:
- 202 dpi
Label Size:
- Width 40~60 mm
- Length 30~120 mm
I/O Ports:
- RS232, USB, Ethernet
- Cash drawer Port
Keyboards:
- CL5200P: 54 PLU Keys with Double Click Function (108 PLUs)
- CL5200B: 72 PLU Keys with Double Click Function (144 PLUs)
- 36 Function Keys
OS Functions:
- Memory Capacity: 6000 PLUs & 1000 Ingredients
- 45 preset labels installed in the scale and an additional 20 formats can be modified freely with CL-Works PC program.
Software Utilities:
- CL-Works PC program.
Power Supply:
- AC 100~240V, 50/60Hz
External Dimensions (WxDxH):
- Platter Size B & P Type 380 x 250 mm
- CL5200B: 409 x 441×180 mm
- CL5200P: 410 x 500 x 535.8 mm
Operating Environment:
- -10 ~ 40°C, 10-90% RH
Weight:
- CL5200B: 6.95 Kg
- CL5200P: 7.65 Kg
