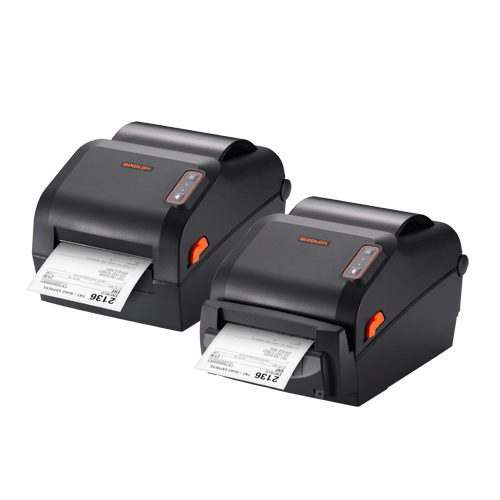

BIXOLON XD5-40d Desktop Direct Thermal Label Printer series

The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS™, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Language.The XD5 series allows user to easily install, integrate, operate and maintain with exceptional print quality at 203 dpi or 300dpi (Factory option). The XD5 series can connect to a wired or wireless network – 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto-cutter and platen rollers with tool-less removable design minimize operation and maintenance cost. Simple out-of-box setup is ensued thanks to the easy media loading of its compact clamshell design with adjustable sensors and real-time calibration across a range of receipt, labels, tag or wristband media.

Description

Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
Optional 300 dpi high resolution choice for fine print quality
Dual-band WLAN (5 GHz and 2.4 GHz)
Dual-mode Bluetooth V4.1 Classic and LE
Extended memory space up to 256MB SDRAM, 256MB Flash
A suite of SDKs for major operating systems
An adjustable media guide and a holder
Compact clamshell design with intuitive menu buttons and optional LCD Display
Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
Field-installable Peeler and Auto Cutter
Compatible with label design software;BIXOLON’s Label Artist™ and Seagull’s BarTender®
Twin Function™ supported: Copy printer setting and data by USB
SNMP enabled WLAN functionality
XPM™ & XCM™ – Web-based printer management software and connection app

GENERAL SPECIFICATIONS

Printing Method:
- Direct Thermal
Printing Width:
- XD5-40d: up to 108 mm
- XD5-43d: up to 105.7 mm
Media Width:
- Min. 15 mm to Max. 118 mm
Media Thickness:
- Min. 0.06 mm to Max. 0.20 mm
Sensors:
- Transmissive
- Reflective (adjustable)
- Head open
Roll Diameter:
- Max Ø 127 mm
Dot Pitch:
- XD5-40d: 203 dpi
- XD5-43d: 300 dpi
Printing Speed (Max.):
- XD5-40d: 178 mm/sec (7 ips)
- XD5-43d: 127 mm/sec (5 ips)
Bar-code Type:
- 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
- 2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font:
- Character Sets:
  - 10 SLCS™ Resident Bitmap Fonts
  - One SLCS™ Resident Scalable Font
  - 16 BPL-Z™ Resident Bitmap Fonts
  - One BPL-Z™ Resident Bitmap Font
  - 5 BPL-E™ Resident Bitmap Fonts
  - 23 Code Page
  - Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
- Graphics: Supporting user-defined fonts, graphics, formats, and logos
Emulation:
- SLCS™, BPL-Z™, BPL-E™
Controls:
- Function keys
CPU:
- N/A
Memory:
- SDRAM: 64MB
- Flash (Non-Volatile Memory): 128MB
- Optional:
  - 64MB SDRAM & 128MB Flash
  - or 256MB SDRAM & 256MB Flash
Interfaces:
- Standard USB + USB Host
- Optional extra:
  - Serial + Ethernet or
  - Serial + Ethernet + WLAN (802.11a/b/g/n dual Band) or
  - Serial + Ethernet + Bluetooth (V4.2 Classic / LE, Class 1 MFI certified)
Auto Cutter:
- Optional
Driver available for:
- Windows Driver (EURO Plus/Seagull™)
- OPOS/JPOS Driver
- Linux CUPS Driver
- MAC CUPS Driver
- Virtual COM USB/ Ethernet Driver
- Utility Program
- Label Artist™II
- Bartender Ultralite
- SAP® Device Driver
- Android, iOS, Windows SDK & LINUX SDK, Chrome SDK, Xamarin SDK
Operating Environment:
- Temperature: 0 to 40 °C
- Humidity: 10 to 80% (no condensation)
Storage Environment:
- Temperature: -20 to 60 °C
- Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH):
- 194 × 248 × 169 mm
Weight:
- 1.89 Kg
Power Supply:
- External Power Supply 100-240V 50/60Hz
- EnergyStar Certified

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

24 months
