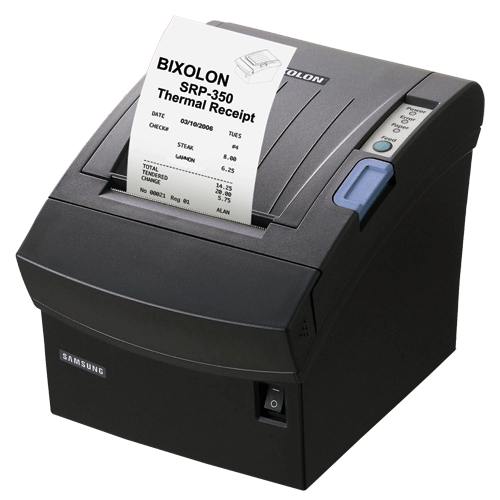

BIXOLON SRP-350III Thermal POS Printer Thermal POS Printer

The SRP-350III is the next generation in the SRP-350 model range. The BIXOLON SRP-350III is a 3 inch thermal receipt printer. The biggest benefit of the SRP-350III is improved printing speed, not only Text printing speed, but also Image printing speed is now up to 250mm/sec. Various drivers including a smart Window driver make the BIXOLON SRP-350III thermal receipt printer easy to configure in many applications. The SRP-350III with its Quicker speed has even better reliability, which you would expect from a leading manufacturer. The SRP-350III thermal receipt printer offers simplicity for operator with Easy-paper-loading

Description

Compact Thermal Receipt Printer
250 mm/Sec High Speed Printing
Now standard with USB Interface
Various interface cards available:
RS-232C, IEEE Parallel or 10/100 Ethernet
ESC/POS compatible
Page mode printing
Easy to use:
– Drop in Paper loading
– Eliminates Paper Jams
2D Barcode Printing:
– PDF417
– QR Code
SRP-350III PSP (POS Software Package) Launcher Available
– Intelligent Interface Auto-installer
– Reverse Printing (Rotation)
– Margin Crop
– Text & Image Macro
NV Memory for Bit map Data storage
Full or Partial Cut
Drivers available for Windows, OPOS, JPOS, Mac & Linux
Available in Dark Grey & White (Special Order)

GENERAL SPECIFICATIONS

Printing Method Line Thermal Dot Printing
Printing Width 80mm Paper: 72mm 58mm Paper: 48mm
Dot Pitch 180 dpi (7dots/mm)
Printing Speed (Max.) 250 mm/Sec
Number of Columns 80 mm Paper:

Font A – 42 columns
Font B – 56 columns
Font C – 56 columns
Korean: 21 columns
Chinese: 21 columns

Character Size

Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Korean: 24 x 24
Chinese: 24 x 24

Character Table/Code Pages

Alphanumeric: 95
Expanded Graphics 128×37 page
International Character: 32

Bar-code Type UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code

Paper feed method Friction
Paper Type Thermal Paper Roll
Paper Width 80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter Max Ø 83.0mm
Paper Supply Method Easy Paper Loading, Drop in and Print Auto Cutter
Indicators/Controls Power Light, Error Light, Paper Out Light Buzzer
Emulation ESC/POS
Print Buffer 4 KBytes
NV Memory 256 KBytes
Sensors Paper End Sensor , Paper near end sensor, Rear Cover Open Sensor
Drawer Port 1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port N/A
Interfaces Standard USB V2.0 on Board plus, RS232C or Parallel (IEEE 1284 or Ethernet
Driver available Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver
Software Utilities Firmware/NV Image download Utility Software Package
Power Supply Input: AC100 ~240V DC 24V, 2.5A
Power Consumption Max. 60W
External Dimensions (WxDxH) 145 x 203 x 146 mm
Weight Approx. 1.67 Kg
Operating Environment 0-45°C 10-80% RH None condensing
Storage Environment -10-55°C 10-80% RH None condensing
Reliability

Printer: 70 million Lines
Head: 150 Km
Auto Cutter: 1.8 Million cuts

EMC/Safety Standards UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

24 months
