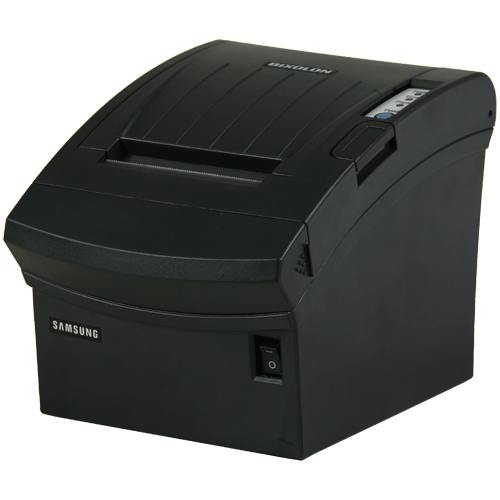

BIXOLON SRP-350 PlusIII Thermal POS Printer

The BIXOLON SRP-350plusIII is the next generation in the SRP-350 Plus range, a 3 inch thermal receipt printer fully featured with improved printing speed up to 300mm/sec. Easy-to-use Windows driver and other various drivers make BIXOLON SRP-350plusII even more flexible to connect to many POS Applications in the market. The SRP-350 Plus III also comes with cost saving paper reduction function and standard with USB 2.0 and Ethernet Interface.

Description

Fast printing speed of up to 300mm per second
High speed USB 2.0 & Ethernet Interface standard onboard
Optional RS232, Parallel, Wifi and Bluetooth interfaces available
Compatible with smart devices including iOS (MFi optional), Android & Windows RT 8.1
Long lasting Auto-cutter up to 1.8 million cuts with easy paper-jam removal
Two colour printing (on special Paper)
Cost saving Paper reduction function (also for Barcode)
Customer oriented software tools provided
2D barcode printing support (PDF417, Datamatrix & QR code)
Available in Dark Grey & White (special Order)
Only Auto cutter version available in Australia

GENERAL SPECIFICATIONS

Printing Method Line Thermal Dot Printing
Printing Width 80mm Paper: 72mm,58mm Paper: 48mm
Dot Pitch 180 dpi (7dots/mm)
Printing Speed (Max.) up to 300 mm/Sec
Number of Columns 80 mm Paper:,Font A – 42 columns,Font B – 56 columns,Font C – 56 columns,Korean: 21 columns,Chinese: 21 columns,Japan: 21 columns
Character Size Font A:1.50 ×3.00 mm (12 x 24 Dots),Font B:1.13 ×3.00 mm (9 x 17 Dots),Font C: 1.00 x 2.0 mm (9 x 24 Dots),Korean: 24 x 24,Chinese: 24 x 24,Japanese: 24 x 24
Character Table/Code Pages Alphanumeric: 95,Expanded Graphics 128 x 37 page,International Character: 32
Bar-code Type UPC-A/E, EAN-13/8, ITF, Code39, Code128, CODABAR, Code93, PDF417, QR Code & DataMatrix
Paper feed method Friction
Paper Type Thermal Paper Roll
Paper Width 80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter Max Ø 83.0mm
Paper Supply Method Easy Paper Loading, Drop in and Print Auto Cutter
Indicators/Controls Power Light, Error Light, Paper Out Light Buzzer
Emulation ESC/POS
Print Buffer 4 KBytes
NV Memory 768 KBytes (Mono)
Sensors Paper End Sensor , Paper near end sensor, Cover Open Sensor
Drawer Port 1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port N/A
Interfaces Standard USB V2.0 & Ethernet,Optional extra:,RS23,Parallel,Powered USB,Wifi (802.11 b/g/n),Bluetooth (Class 1, 100m, MFi certified)
Driver available Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB/Ethernet Driver
Software Utilities Firmware/NV Image download,Utility Software Package,SDK available: iOS, Android, Windows
Power Supply External Power Adapter, Input: AC 100~240V output: DC 24V
Power Consumption EnergyStar certified
External Dimensions (WxDxH) 144 x 204 x 148 mm
Weight Approx. 1.56 Kg
Operating Environment 0-45°C 10-80% RH None condensing
Storage Environment -20-60°C 10-90% RH None condensing
Reliability Printer: 70 million Lines, Head: 150 Km, Auto Cutter: 1.8 Million cuts
EMC/Safety Standards UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

24 months
