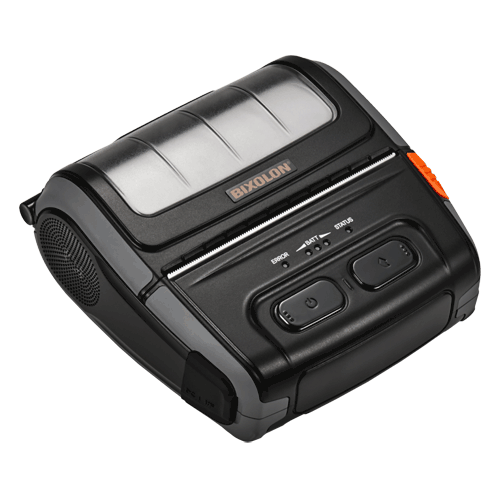

BIXOLON SPP-R410 4″ Mobile Portable Thermal Printer

GENERAL SPECIFICATIONS

• Printing Method:
  • Line Thermal Dot Printing
• Printing Width:
  • Up to 104mm
• Dot Pitch:
  • 203 dpi
• Printing Speed (Max.):
  • Up to 90 mm/Sec (Receipt)
  • Up to 60 mm/Sec (Linerless)
  • 12.5% pattern
• Number of Columns:
  • Font A – 69
  • Font B – 92
  • Font C – 92
  • Korean: 34 columns
  • Chinese: 34 columns
• Character Size:
  • Font A: 12 x 24 Dots
  • Font B: 9 x 17 Dots
  • Font C: 9 x 24 Dots
  • Korean: 24 x 24
  • Chinese: 24 x 24
• Character Table/Code Pages:
  • Alphanumeric: 95
  • Expanded Graphics 128×33 page
  • International Character: 32
• Bar-code Type:
  • 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
  • 2D: Aztec, Data Matrix, GS1 Databar, MaxiCode, PDF417 & QR Code
• Paper feed method:
  • Friction
• Paper Type:
  • Thermal Paper Roll or Labels
  • Linerless (Optional)
• Paper Width:
  • 112mm
• Paper Roll Diameter:
  • Max Ø 57 mm
• Paper Thickness:
  • 0.07+/- 0.005 mm
• Paper Supply Method:
  • Easy Paper Loading, Drop in and Print
• Auto Cutter:
  • N/A
• Indicators/Controls:
  • Power and Battery Charge Indicator
  • Paper feed button
• Emulation:
  • BXL/POS
• Memory:
  • 64Mbit SDRAM
  • 32 Mbit FlashROM
• Sensors:
  • Paper End Sensor: Reflective Sensor
  • Paper Cover open
• Interfaces:
  • Standard: USB V2.0 FS & Serial
  • Optional (code Dependent):
    • Bluetooth V4.1 + EDR
    • WLAN 802.11 b/g – WEP40/104, WPA1/2 (PSK, EAP)
• Driver available:
  • Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver
• Software Utilities:
  • iOS SDK, Android SDK, Windows SDK, Linux SDK
  • Utility Program
• Battery:
  • Rechargeable 7.4V Li-ion 2600mAh
  • Charging time: up to 4 Hrs
• MSR:
  • Factory Option 3 Track DUKPT, T-DES (optional)
• External Dimensions (WxDxH):
  • 143 x 138 x 66 mm
• Weight:
  • Including Battery Approx. 530 g
• Operating Environment:
  • -15-50°C
  • 10-80% RH None condensing
• Storage Environment:
  • -30-70°C
  • 10-80% RH None condensing
• Environmental Sealing:
  • IP54 (With Protective case)
• Mechanical Shock:
  • Drop Spec 1.8m
• Reliability
  • Printhead 50 km
  • Battery: Rechargeable up to 500 times
• EMC/Safety Standards:
  • UL, FCC Class A, TUV-GS, CE 0560, CE, C-Tick
