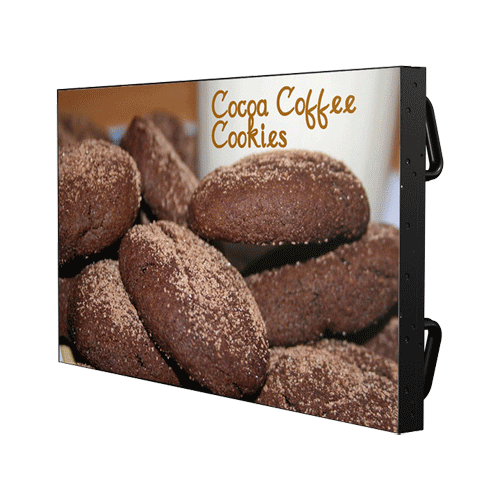

AOPEN DSD-46VE Video Wall Monitor Series

GENERAL SPECIFICATIONS

• Display
  • Type: 46″ LED Backlit LCD Display
  • Aspect Ratio: 16:9
  • Colour/Gray Scale: 1073M/10bits
  • Pixel Pitch (HxW): 0.744×0.744
  • Display Orientation: Portrait or Landscape
  • Resolution: 1920 x 1080
  • Contrast Ratio: 3500:1
  • Brightness:
    • DSD46VE: 450 nits
    • DSD46VE2: 700 nits
  • Response time(G-to-G): 6.5 ms
  • View Angle (H/W): 178/178 degrees
• Tilt Angle
  • Not Applicable
• Touch Panel
  • Not Applicable
• I/O Ports
  • RS232: in x1, out x1 (Used for API utility support)
  • Audio: in x 2, out x 1
  • Input Signal: HDMI x1, VGA x1, YPbPr x1, CVBS x1
  • Audio: Internal Speakers 5W x 2, Connector for 10W x 2 External Speakers
• OS Support
  • Not Applicable
• Environmental Sealing
  • Not Applicable
• Operating Environment
  • Temperature: 0 ~ +40 °C
  • Humidity: 10 ~ 80% RH
• Storage Environment
  • Temperature: -20 ~ +60 °C
  • Humidity: 10 ~ 80% RH
• Power Supply
  • AC: 100~240V 50/60Hz
  • Power Consumption: Max. 115W, Standby Max. 5W
• External Dimensions (WxDxH)
  • Overall: 1024mm x 112mm x 579mm
  • Bezel Width: L/R 3.5mm, T/B 2.1mm
• Weight
  • 20.5 Kg
• EMC/Safety Standards
  • C-Tick, CE, FCC, CB, BSMI, RoHS
